Mechanical Seal SB112A-30 Mechanical Pump Shaft Seal

Min. bestelaantal : 5 procent Prijs : Negotiated
Verpakking Details : vak als vereiste Levertijd : 20-30 dagen
Betalingscondities : T/T, Western Union, L/C Levering vermogen : 100000PC/Month
Plaats van herkomst: gemaakt in China Merknaam: JR
Certificering: ISO9001 Modelnummer: SB112A-30

Gedetailleerde informatie

Materiaal: SIC SIC FKM-AUTO CER NBR Functie: voor oliepompen, waterpompen
Transportpakket: doos HS-code: 848420090
Specificatie: 30 mm Certificaat: ISO9001
Type: Voor SB112A-30 standaard: standaard
Stijl: Mechanische afdichting Product Name: SB112A-30

Productomschrijving

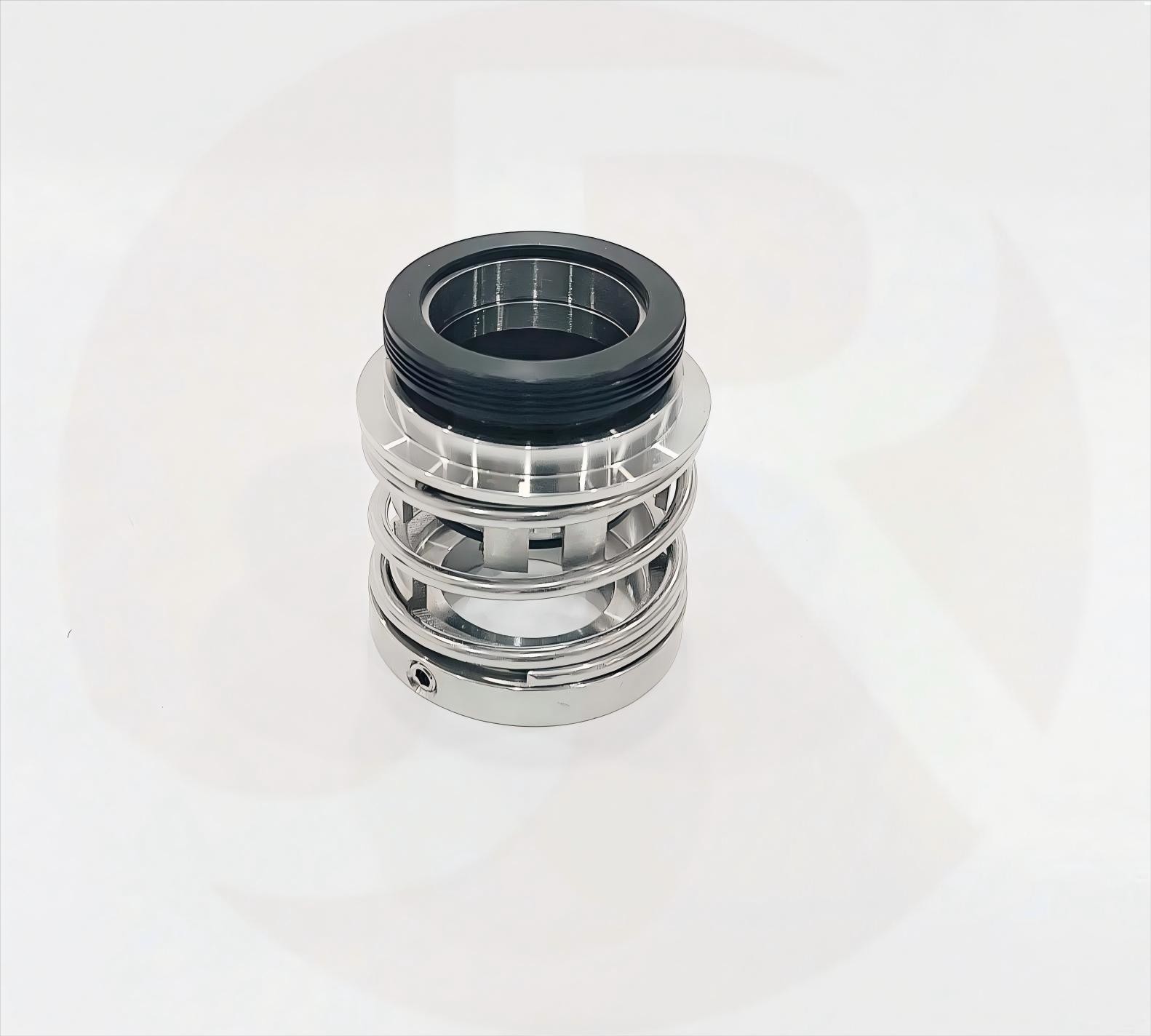

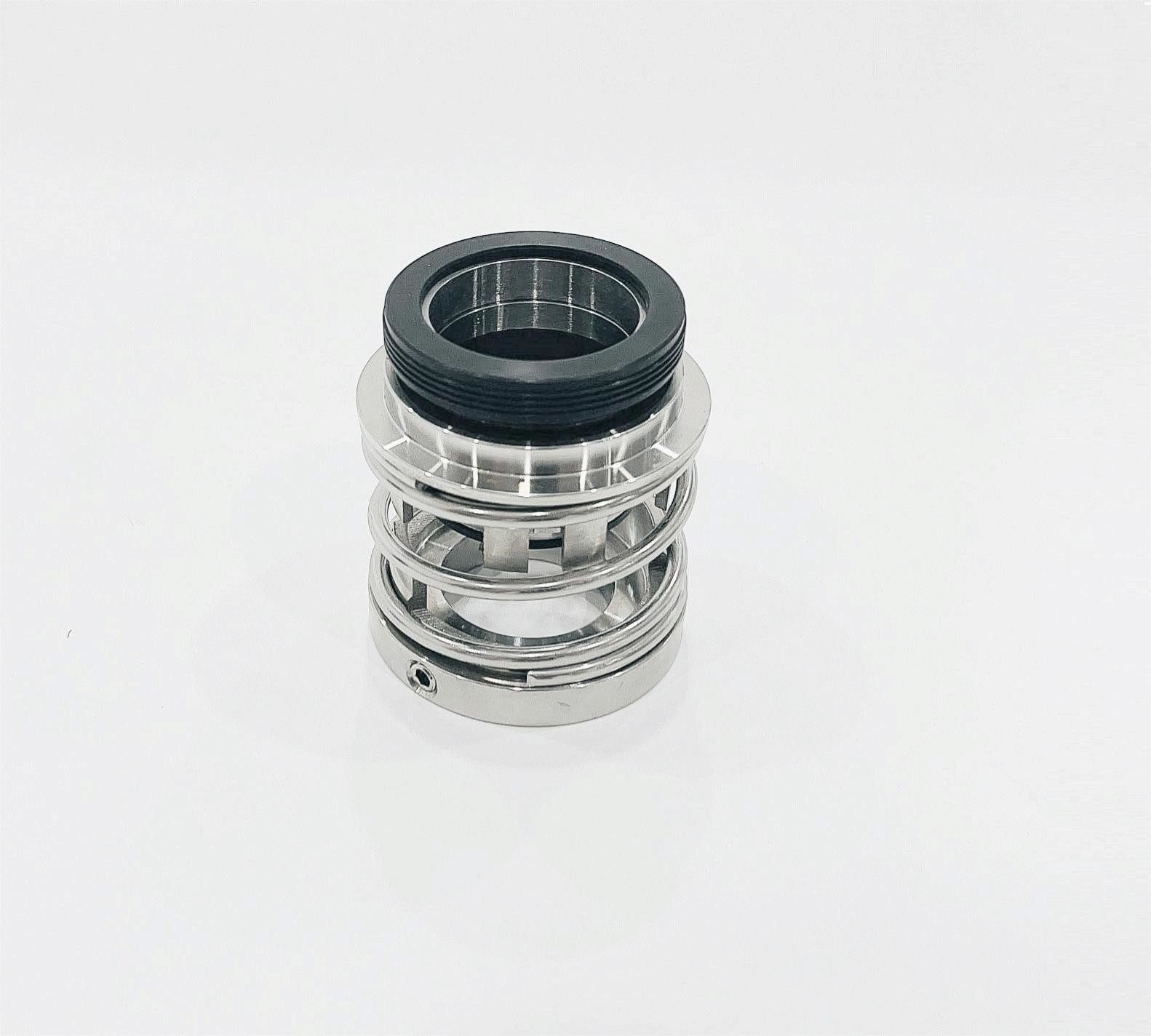

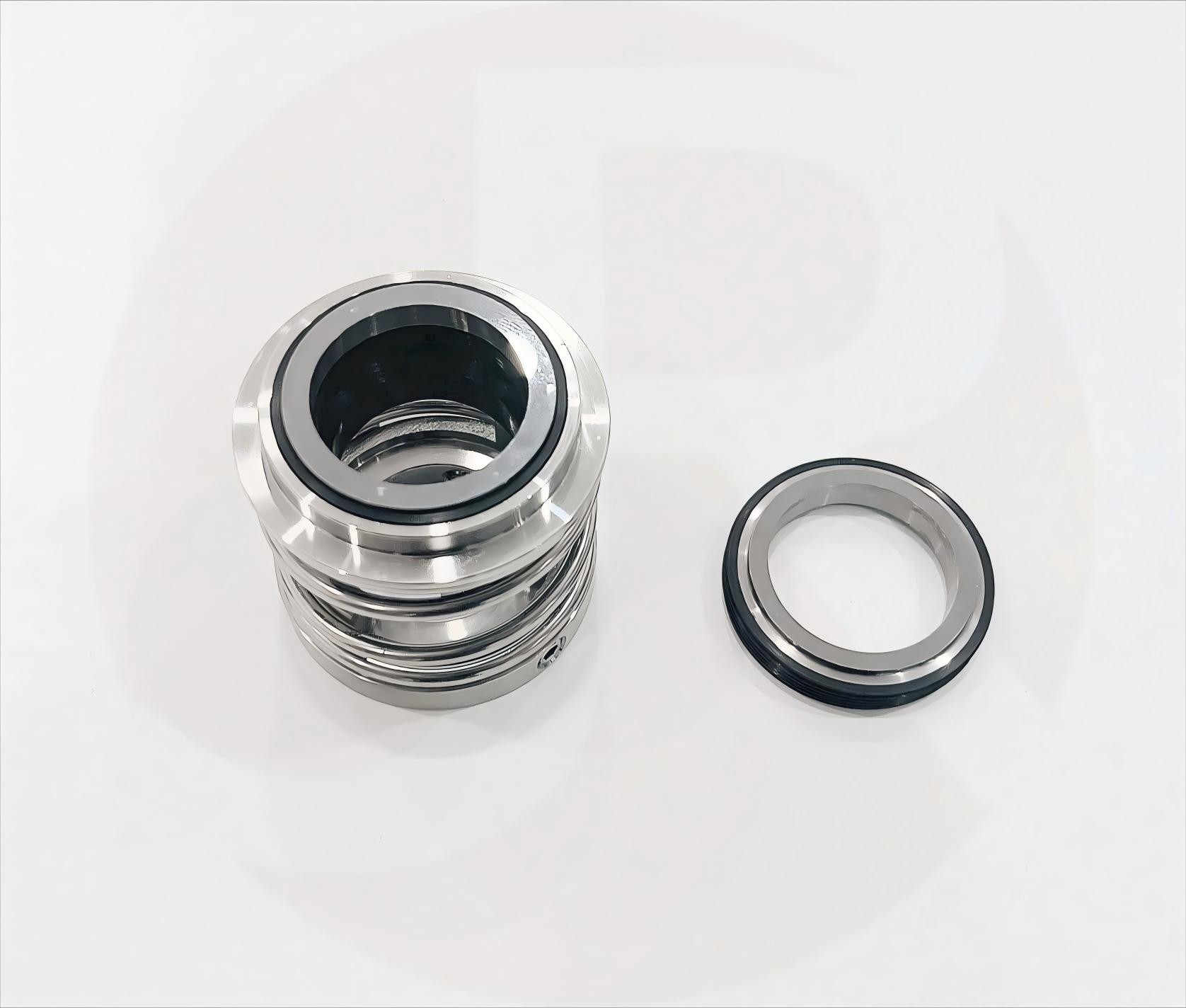

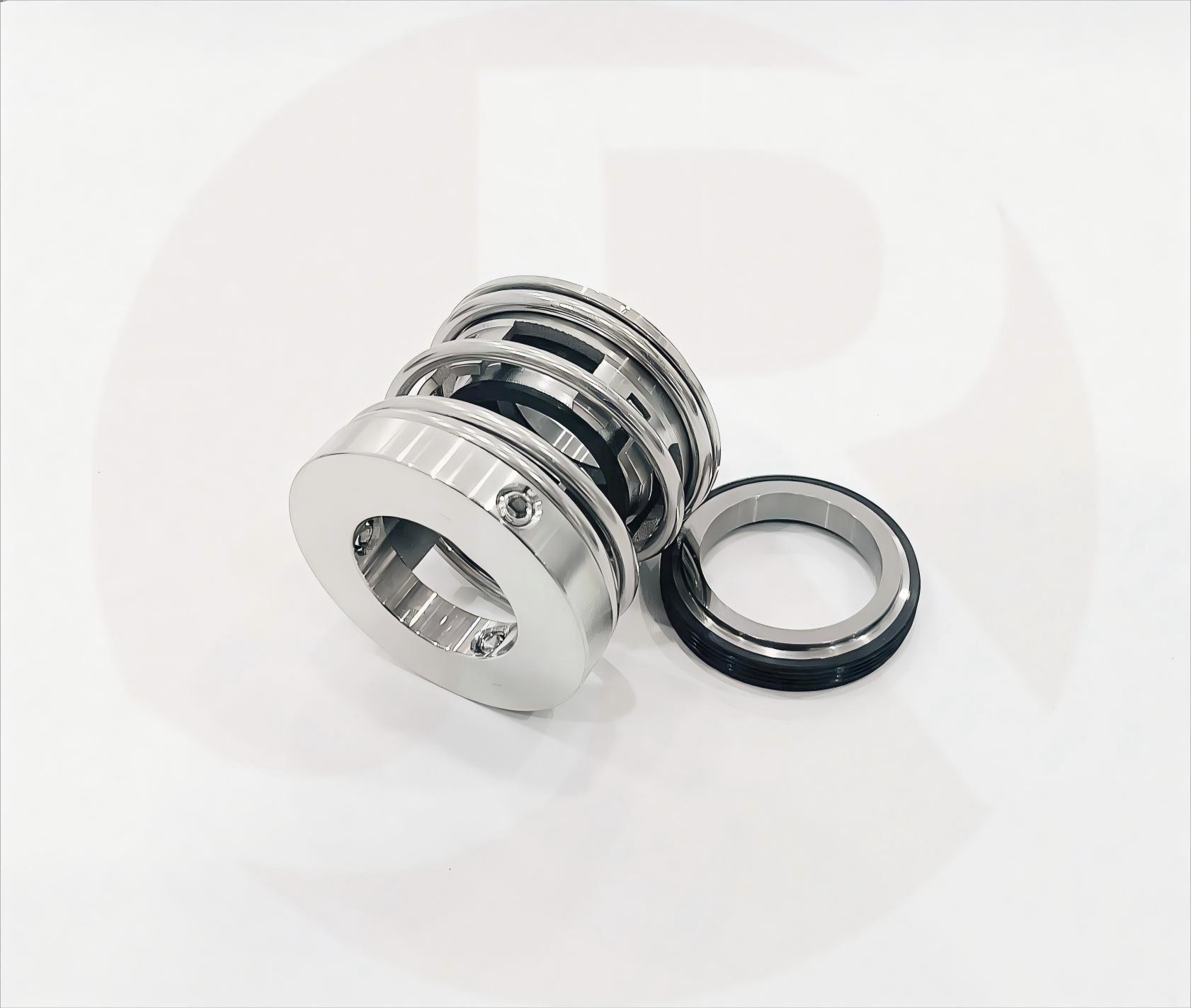

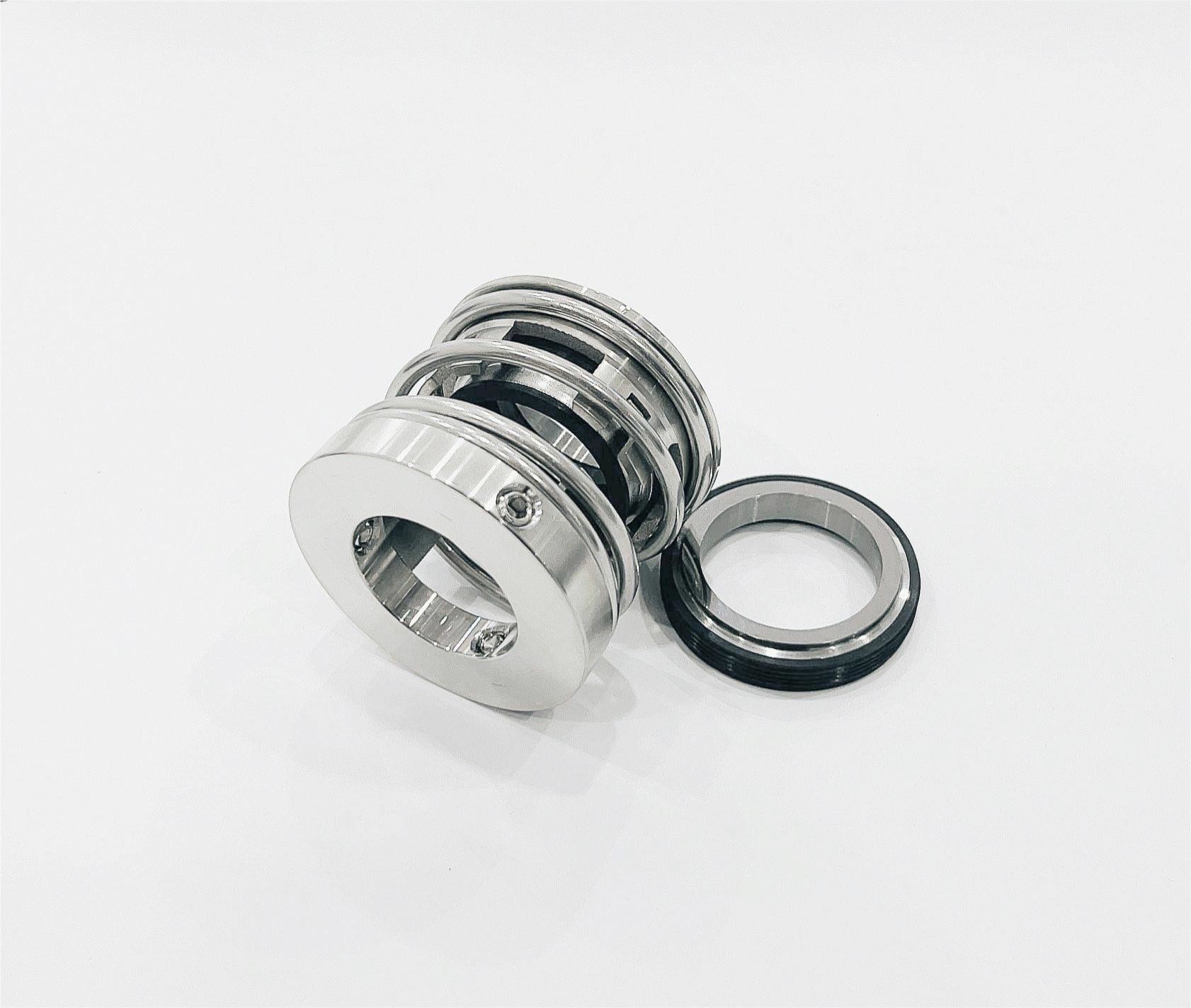

Mechanical Pump Shaft Seal SB112A-30



Operational Conditions:



Temperature: -20ºC to +180ºC
Pressure: ≤2.5MPa
Speed: ≤15m/s
2. Materials:
Stationary Ring: Ceramic, Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, FKM, PTFE
Spring and Metal Parts: Steel
3. Seat Type:
4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids


Performance Capabilities

SB112A mechanical seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
30mm,
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Pa






Mechanical Seal SB112A-30 Mechanical Pump Shaft Seal 0Mechanical Seal SB112A-30 Mechanical Pump Shaft Seal 1Mechanical Seal SB112A-30 Mechanical Pump Shaft Seal 2Mechanical Seal SB112A-30 Mechanical Pump Shaft Seal 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal,

Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal,

Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal,

Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal,

Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal,

Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps,

Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha,

Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
