Thuis ProductenEnige de Lente Mechanische Verbinding9T-1 1/8" 9T-1.125 John Crane Mechanical Seals Type 9T for Shaft Size 1 1/8 Inch Pumps Material CAR/SIC/PTFE Machinery Seal
9T-1 1/8" 9T-1.125 John Crane Mechanical Seals Type 9T for Shaft Size 1 1/8 Inch Pumps Material CAR/SIC/PTFE Machinery Seal
9T-1 1/8" 9T-1.125 John Crane Mechanical Seals Type 9T for Shaft Size 1 1/8 Inch Pumps Material CAR/SIC/PTFE Machinery Seal 9T-1 1/8" 9T-1.125 John Crane Mechanical Seals Type 9T for Shaft Size 1 1/8 Inch Pumps Material CAR/SIC/PTFE Machinery Seal 9T-1 1/8" 9T-1.125 John Crane Mechanical Seals Type 9T for Shaft Size 1 1/8 Inch Pumps Material CAR/SIC/PTFE Machinery Seal 9T-1 1/8" 9T-1.125 John Crane Mechanical Seals Type 9T for Shaft Size 1 1/8 Inch Pumps Material CAR/SIC/PTFE Machinery Seal 9T-1 1/8" 9T-1.125 John Crane Mechanical Seals Type 9T for Shaft Size 1 1/8 Inch Pumps Material CAR/SIC/PTFE Machinery Seal
Contact nu

9T-1 1/8" 9T-1.125 John Crane Mechanical Seals Type 9T for Shaft Size 1 1/8 Inch Pumps Material CAR/SIC/PTFE Machinery Seal

Min. bestelaantal : 100 -dak Prijs : Negotiated
Verpakking Details : doos als vereiste Levertijd : 10 dagen
Betalingscondities : T/T, Western Union, L/C Levering vermogen : 10000000 pc/maand
Plaats van herkomst: Gemaakt in China Merknaam: JR
Certificering: iso9001 Modelnummer: 9t

Gedetailleerde informatie
Materiaal: Sic sic fkm cer car nbr Functie: Voor een oliepomp, waterpomp
Transportpakket: doos Hs-code: 848420090
Specificatie: Aesseal M05 verzegelt Echte verbinding 294 certificaat: ISO9001
Type: De verbinding van John Crane 9-t Standaard of niet -standaard: Standaard
Stijl: De mechanische verbinding van Verbindingsjohn crane 9-t Maat: 0,5“ - 4“

Productomschrijving

Mechanical Seal John Crane 9T PTFE Seal AES Seal M05 Sealsterling 294 Seal Leak Proof Mechanical SealS



Operations Conditions:

  1. John Crane 9-T seal
  2. John Crane Type 9T Replacement Seal - Multi Spring seal
  3. Temperature:-40ºC to +220ºC
  4. Pressure:≤1.2mpa
  5. Speed:≤15m/s

Materials:

  • Stationary Ring:Silicon Carbide Reaction Bonded
  • Rotary Ring:Q5,Silicon Carbide Reaction Bonded
  • Secondary Seal:PTFE
  • Spring and Metal Parts:Stainless Steel
  • Seat Types:
  • Applications:Clean Water



Performance Capabilities:



Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 25 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
0.5- 4”
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
  • 1. it is equivalent to
  • Aesseal M05 seal
  • Sterling 294 seal
  • 2. Our seals can replace the original seals.
  • 3.The John Crane Type 9-T is a seal, which can be categorized as a multi spring seal. It is an alternative to the Qseals QFMS01, Flowserve 28518843, Flowserve PO2883-00 and 5 others.
  • 4.Customized products and OEM is welcomed
  • 5. We provide Factory Price,High Quality ,Fast Delivery and Best Sevice.

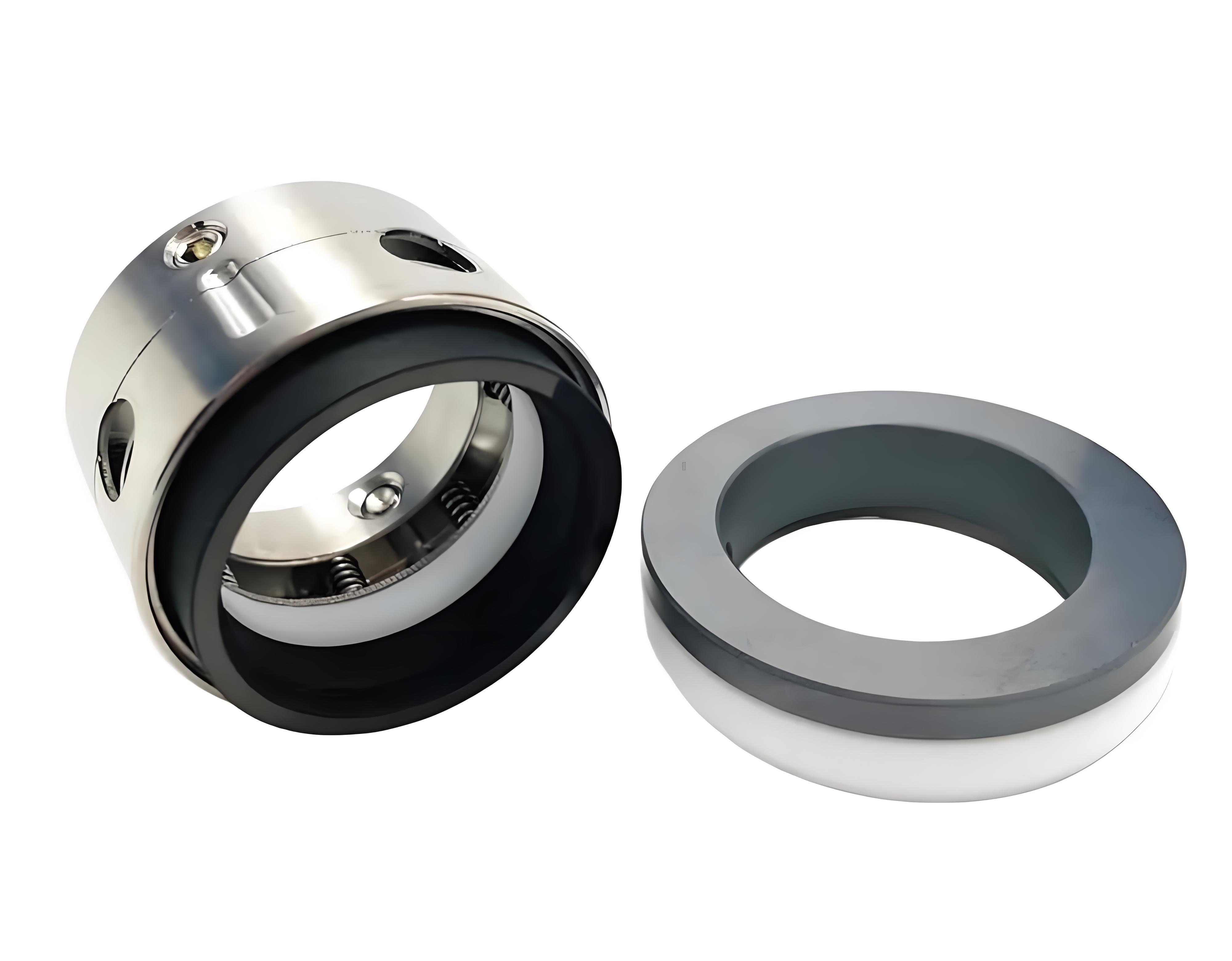

9T-1 1/8" 9T-1.125 John Crane Mechanical Seals Type 9T for Shaft Size 1 1/8 Inch Pumps Material CAR/SIC/PTFE Machinery Seal 0

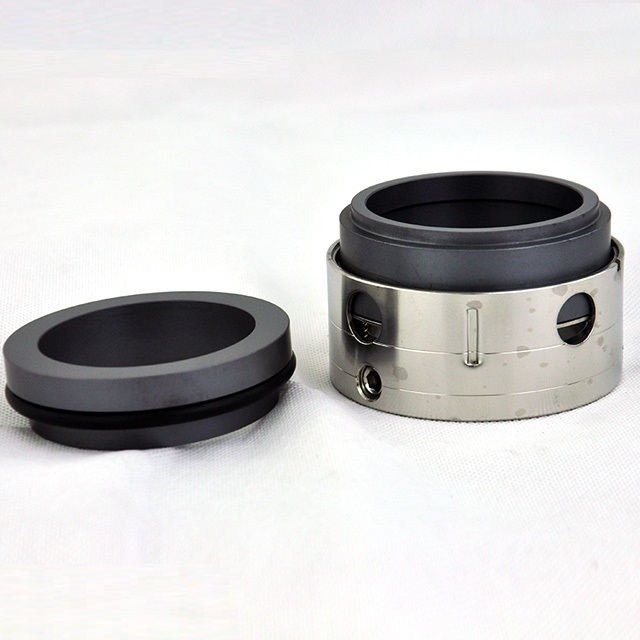

9T-1 1/8" 9T-1.125 John Crane Mechanical Seals Type 9T for Shaft Size 1 1/8 Inch Pumps Material CAR/SIC/PTFE Machinery Seal 1

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
