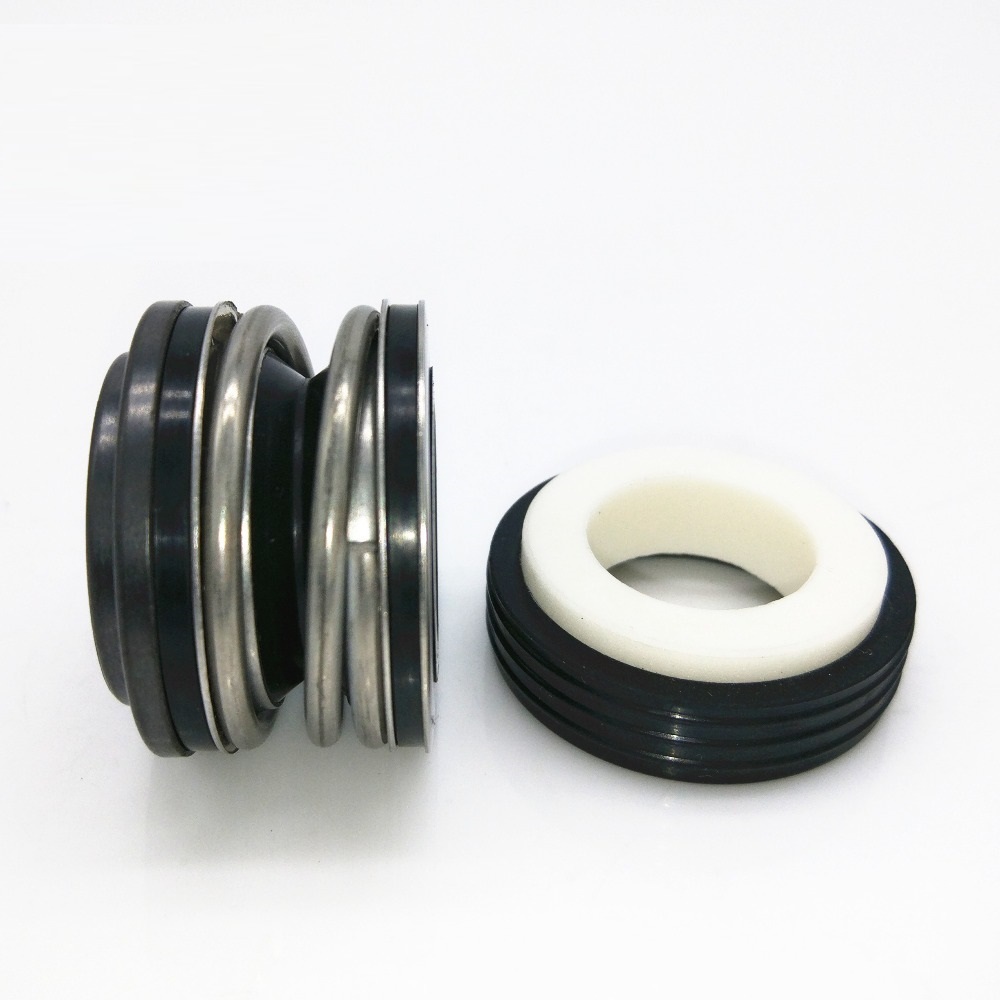

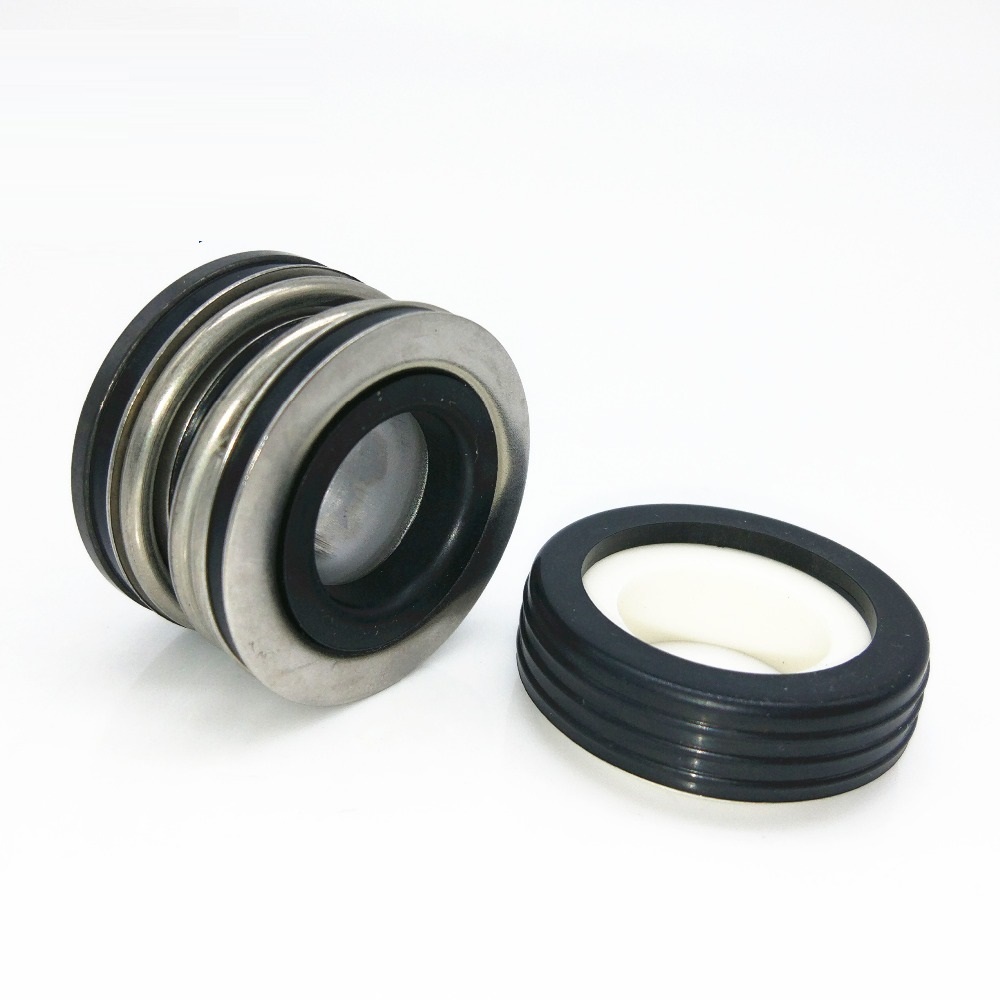

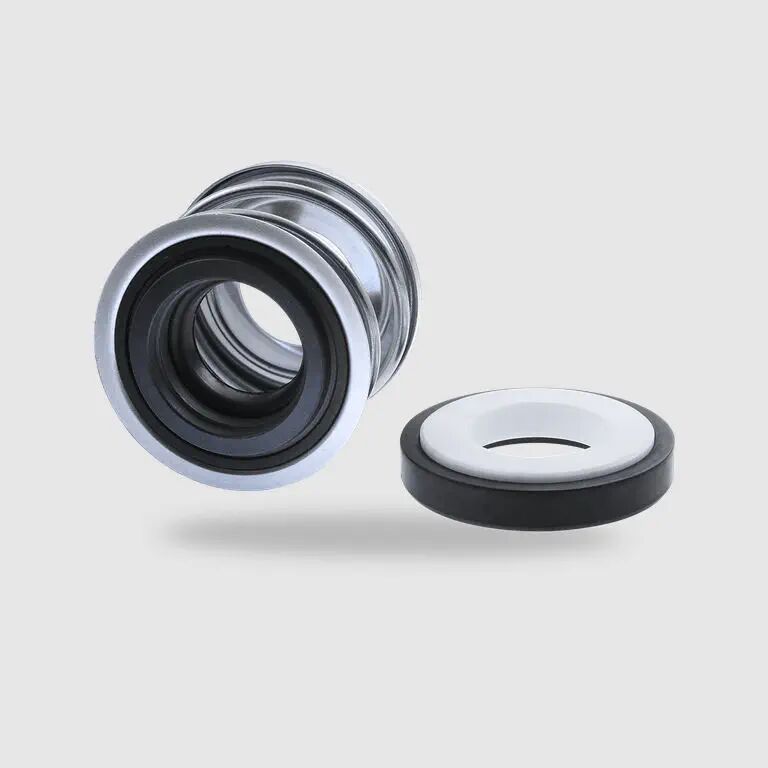

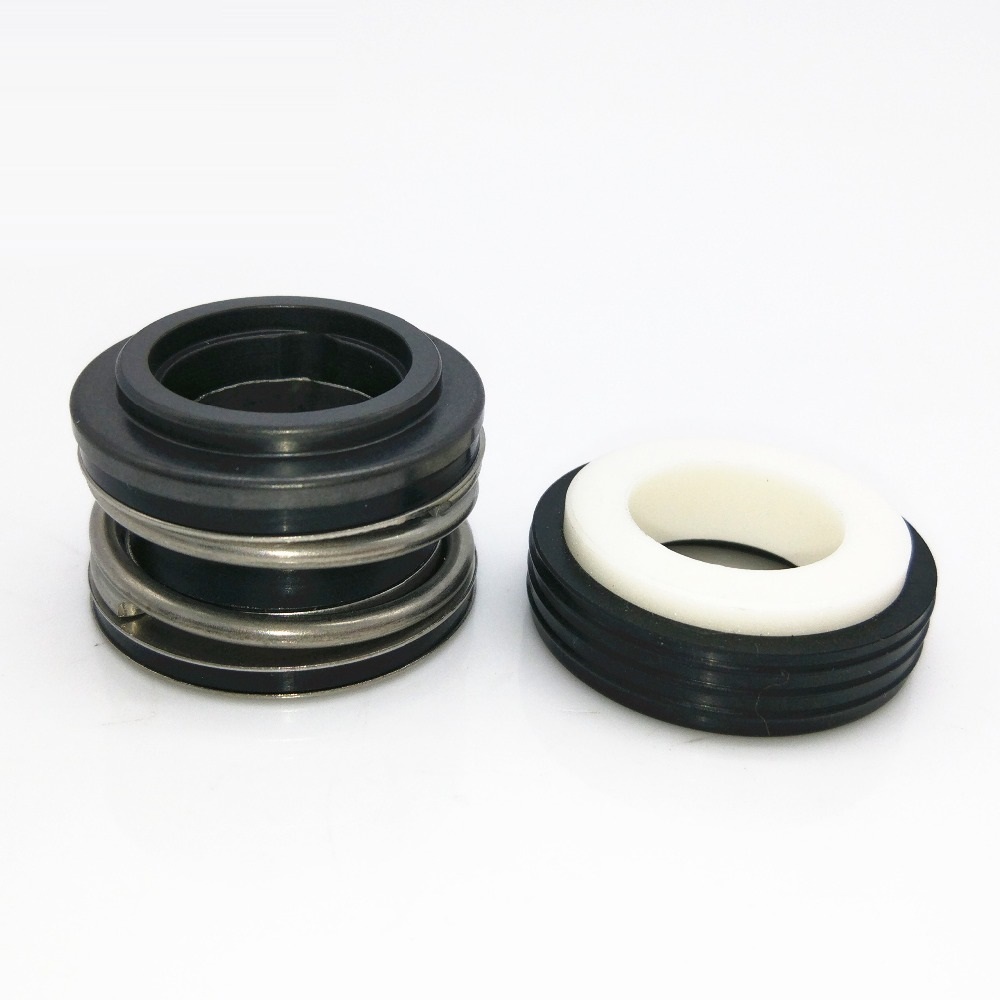

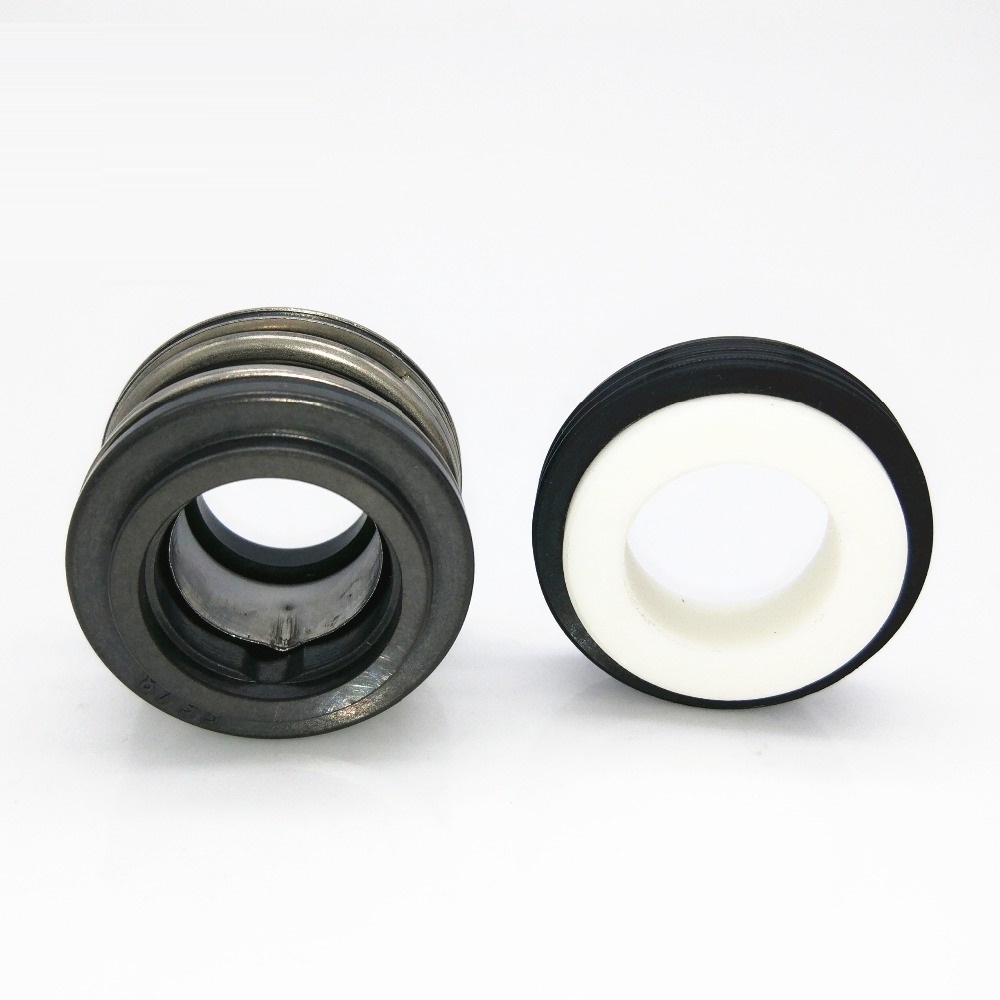

Single Spring Elastomer Bellows Mechanical Seal Burgmann BT-PN, John Crane Type 106 Mechanical Seal
Single Spring Elastomer Bellows Mechanical Seal Burgmann BT-PN, John Crane Type 106 Mechanical Seal Single Spring Elastomer Bellows Mechanical Seal Burgmann BT-PN, John Crane Type 106 Mechanical Seal Single Spring Elastomer Bellows Mechanical Seal Burgmann BT-PN, John Crane Type 106 Mechanical Seal Single Spring Elastomer Bellows Mechanical Seal Burgmann BT-PN, John Crane Type 106 Mechanical Seal Single Spring Elastomer Bellows Mechanical Seal Burgmann BT-PN, John Crane Type 106 Mechanical Seal
Contact nu

Single Spring Elastomer Bellows Mechanical Seal Burgmann BT-PN, John Crane Type 106 Mechanical Seal

Min. bestelaantal : 1 ST Prijs : USD50-1000
Verpakking Details : doos als vereiste Levertijd : 20-30DAGEN
Betalingscondities : T/T, Western Union, L/C Levering vermogen : 100000PC/maand
Plaats van herkomst: GEMAAKT IN CHINA Merknaam: JR
Certificering: iso9001 Modelnummer: BT-PN

Gedetailleerde informatie
Materiaal: SIC SIC FKM Functie: voor oliepomp, waterpomp
HS-code: 848420090 Certificaat: ISO9001
Type: Voor Burgmann BT-PN, John Crane Type 106 mechanische asafdichting Standaard: Standaard
Maat: Aangepast formaat Sollicitatie: asafdichting
Specificatie: Voor mechanische asafdichting van AES-pomp Stijl: Burgmann BT-PN, John Crane Type 106 mechanische asafdichting

Productomschrijving

Single Spring Elastomer Bellows Mechanical Seal Burgmann BT-PN, John Crane Type 106 Mechanical Seal



Operational Conditions:

  1. Equivalent to Burgmann BT-PN,John Crane Type 106
    Single and dual seals
    Short axial installation length
    Material approvals available
  2. Temperature: -20ºC to +180ºC
  3. Pressure: ≤2.5MPa
  4. Speed: ≤15m/s

 Materials:

  • Seal face: Carbon graphite resin impregnated (B), Carbon graphite solid (B3), Silicon carbide (Q1, Q6)
    Seat: Steatite (X), Aluminium oxide (V, V1), Silicon carbide (Q1, Q6)
    Elastomer: NBR (P), EPDM (E), FKM (V)
    Metal parts: CrNiMo steel (G), CrNi steel (F)
  • 3. Seat Type:
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids
Shaft diameter: d1 = 8 … 30 mm
Pressure: p1* = 12 bar (170 PSI)
Temperature: t* = -20 °C … +120 °C (-4 °C … +248 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
*) Depending on medium, size and material


Performance Capabilities



Temperature
-40℃ to 200℃, dependent on the elastomer
Pressure
Up to 8 bar
Speed
Up to 18 m/s
End play/axial float allowance
±0.1mm
Size
8 … 30 mm'
Brand
JR
Face
Carbon, SiC, TC
Seat
Carbon, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

The BT-PN is a large series mechanical seal with a simple yet effective design that is easy to assemble. The special spring arrangement allows a short axial installation length. This advantage is combined with an increased working pressure capability of up to 12 bar (174 PSI). The spring is free from torque transmission.



Single Spring Elastomer Bellows Mechanical Seal Burgmann BT-PN, John Crane Type 106 Mechanical Seal 0

Single Spring Elastomer Bellows Mechanical Seal Burgmann BT-PN, John Crane Type 106 Mechanical Seal 1Single Spring Elastomer Bellows Mechanical Seal Burgmann BT-PN, John Crane Type 106 Mechanical Seal 2Single Spring Elastomer Bellows Mechanical Seal Burgmann BT-PN, John Crane Type 106 Mechanical Seal 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
