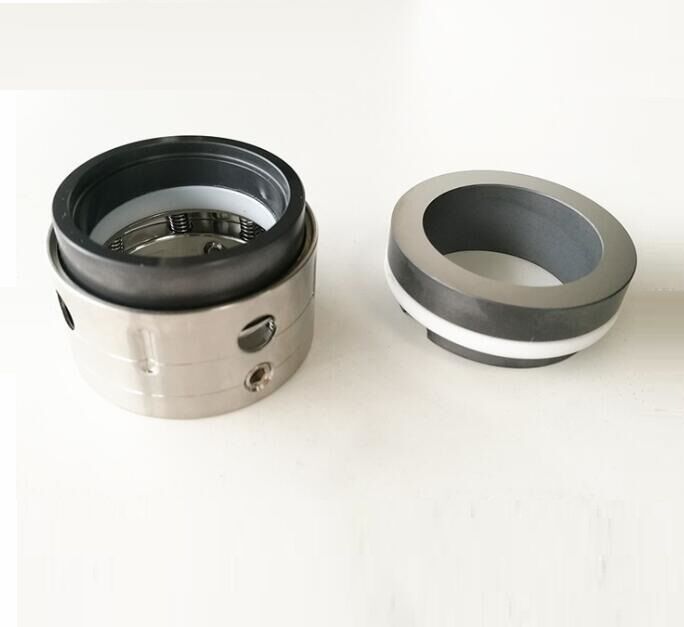

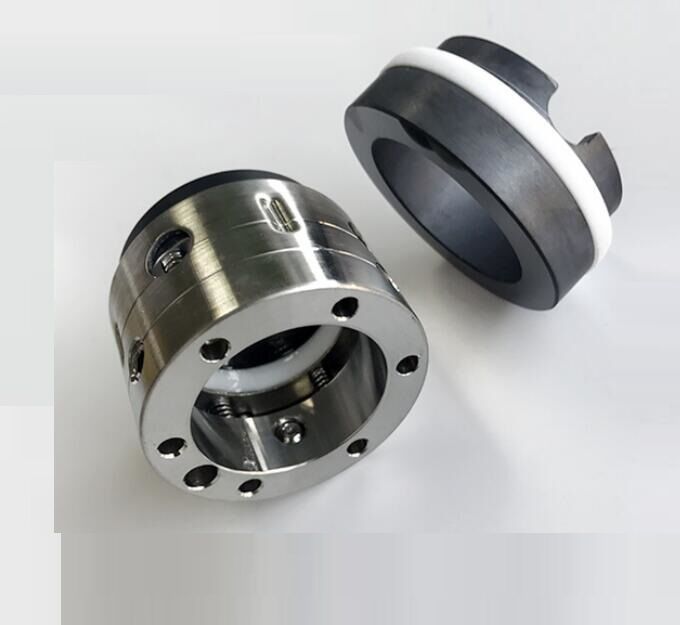

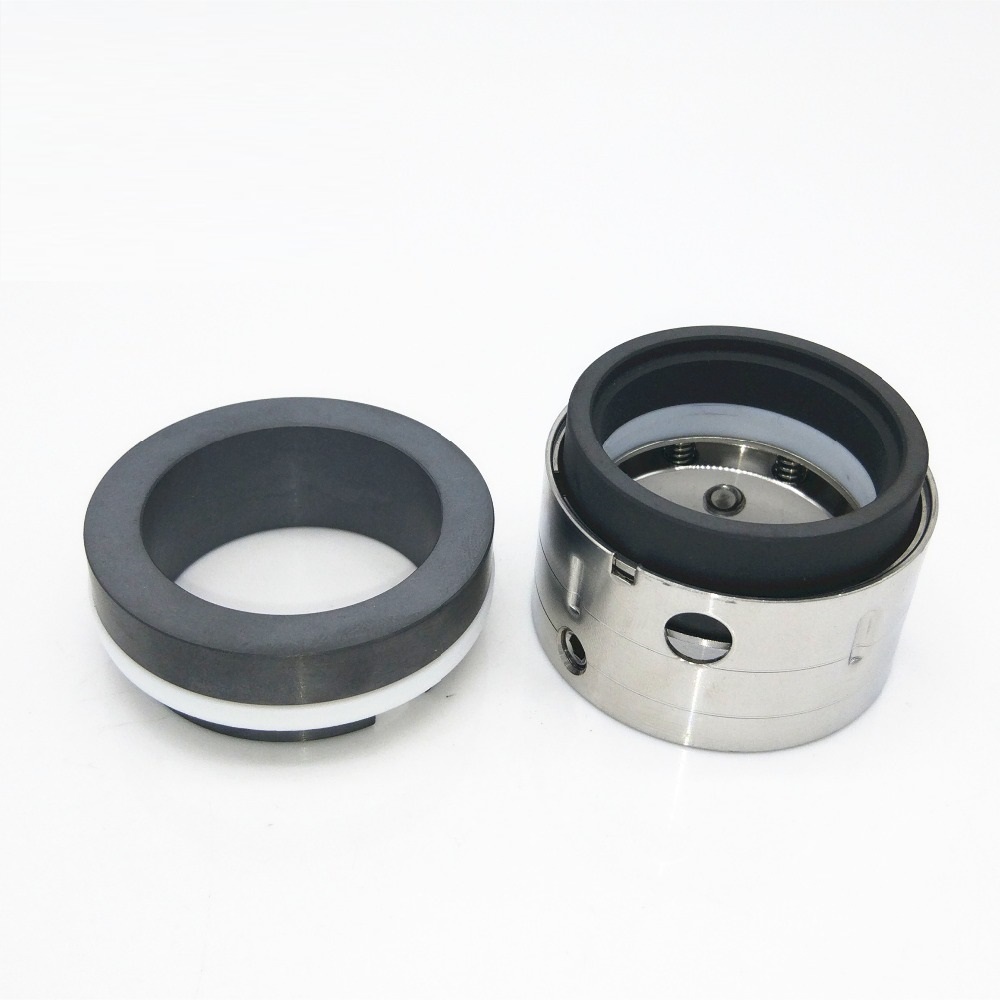

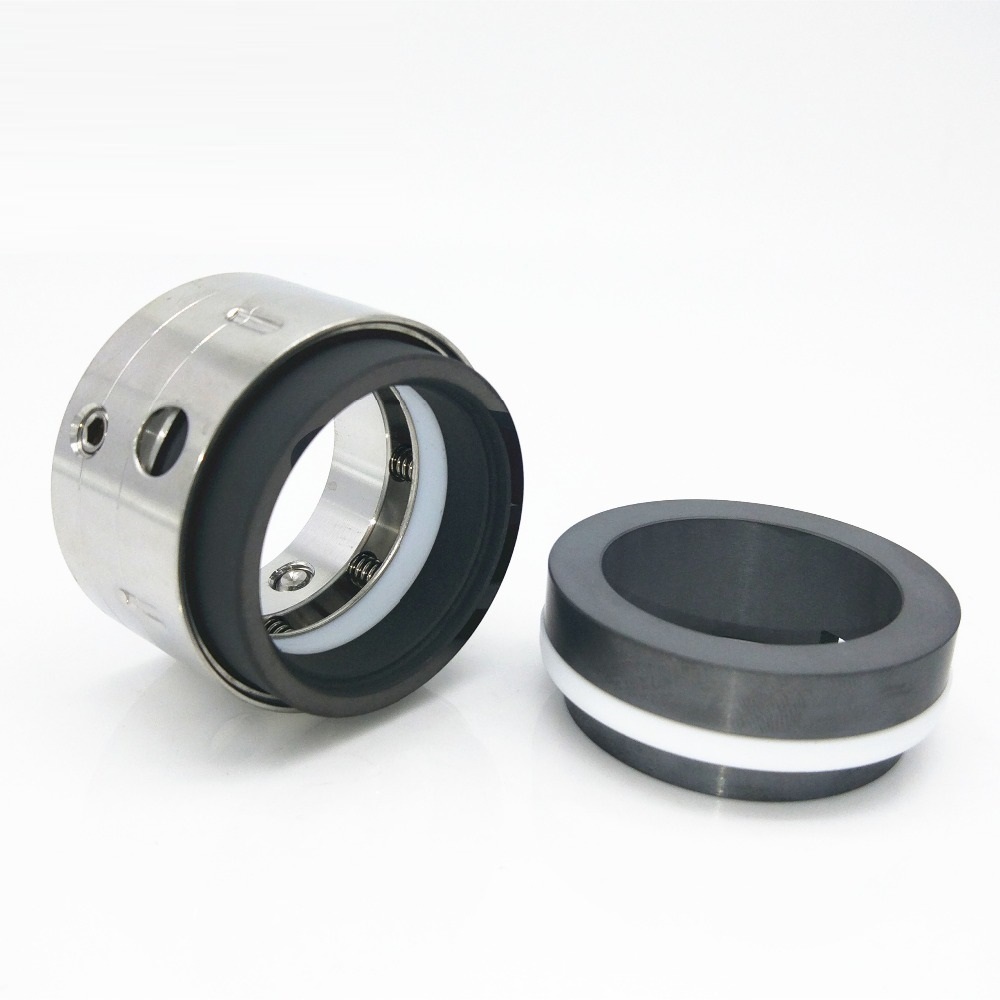

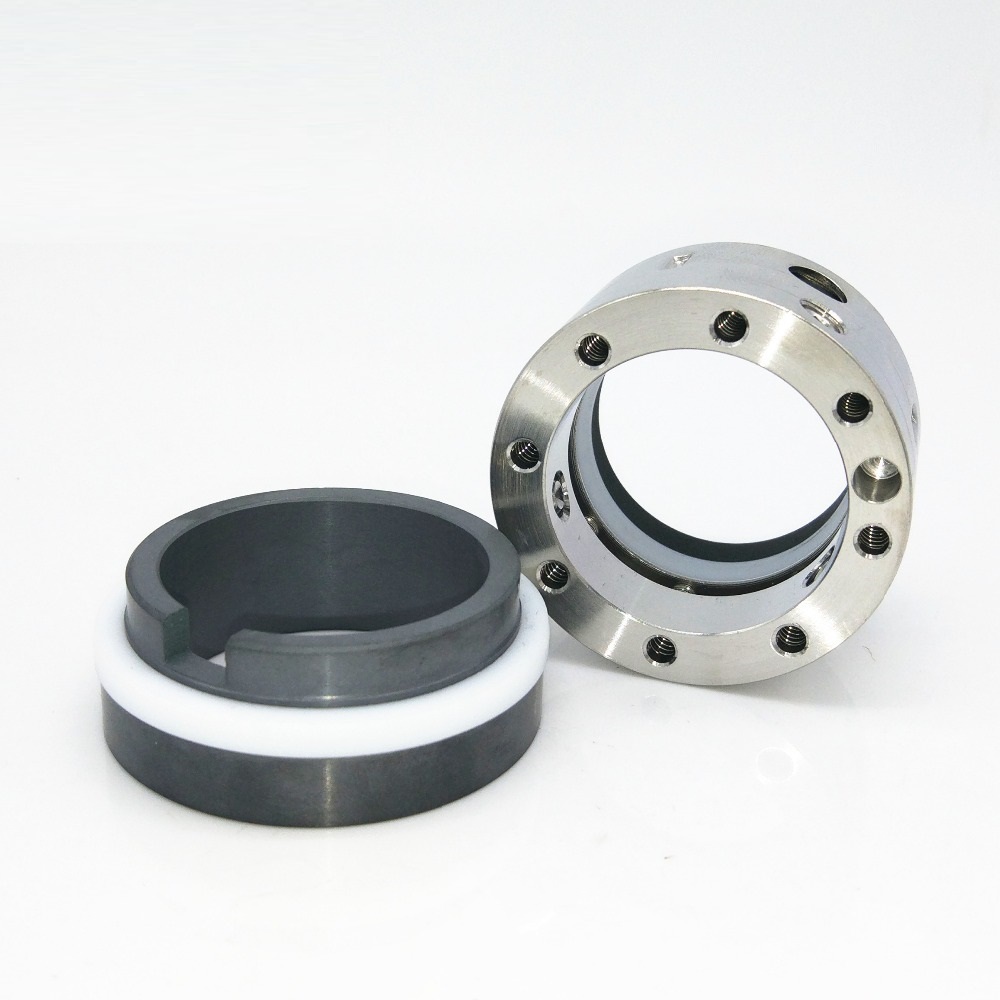

Multi-spring PTFE Wedge Seal John Crane Type 59U PTFE Wedge Seal
Multi-spring PTFE Wedge Seal John Crane Type 59U PTFE Wedge Seal
Multi-spring PTFE Wedge Seal John Crane Type 59U PTFE Wedge Seal Multi-spring PTFE Wedge Seal John Crane Type 59U PTFE Wedge Seal Multi-spring PTFE Wedge Seal John Crane Type 59U PTFE Wedge Seal Multi-spring PTFE Wedge Seal John Crane Type 59U PTFE Wedge Seal Multi-spring PTFE Wedge Seal John Crane Type 59U PTFE Wedge Seal Multi-spring PTFE Wedge Seal John Crane Type 59U PTFE Wedge Seal
Contact nu

Multi-spring PTFE Wedge Seal John Crane Type 59U PTFE Wedge Seal

Min. bestelaantal : 5 st Prijs : Negotiated
Verpakking Details : doos als vereiste Levertijd : 20-30 dagen
Betalingscondities : T/T, Western Union, L/C Levering vermogen : 100000PC/maand
Plaats van herkomst: Gemaakt in China Merknaam: JR
Certificering: ISO9001 Modelnummer: 59U

Gedetailleerde informatie
materiaal: SIC SIC FKM-AUTO CER NBR Functie: voor oliepomp, waterpomp
Transportpakket: Doos HS-code: 848420090
Specificatie: John Crane-type 59U Certificaat: ISO9001
Type: 59U Standaard: Standaard
Stijl: Mechanische afdichting Vervanging: De verbinding Aesseal M03 van John Crane T59U van de Burgmann BT-C56.KU verbinding verzegelt Echte v

Productomschrijving

Mechanical Seal 59U PTFE Wedge Seal Multi Spring Pump Seal For John Crane 59U Burgmann BT-C56.KU Seal Aesseal M03 Seal



Operational Conditions:

59U:John Crane Type 59U,Burgmann BT-C56.KU, AES M03,Sterling 259,VULCAN 1659
Structure Description:
Equivalent to John Crane Type 59U,Burgmann BT-C56.KU, AES M03,Sterling 259,VULCAN 1659
Multiple spring , unbalanced seal
Operating Limits:
Temperature:-40---250℃
Speed: 15m/s
Pressure: 12bar
Standard size: 14-100mm
Materials:
Seal ring: Car,Sic,Ssic,TC,Ceramic
Secondary seal: NBR,EPDM,FKM, etc.
Spring and Metal parts:304,316,HAST.C

General chemical applications, oil refining, petrochemical, and pharmaceutical industries.
Suitable for use with corrosive fluids and for cryogenic and high-temperature applications.
By choosing suitable component materials, the seals can be adapted to operate with a wide range of liquids and operating conditions.


Performance Capabilities



sulzer pump john crane 59U mechanical seal rotary seal mixer seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
14mm to 100mm
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS304, S

Description:

1.Replacement to:

Burgmann BT-C56.KU seal

John Crane T59U seal

Aesseal M03 seal

Sterling 259 seal

2. Our seals can replace the original seals.

3.Application: seals are primarily used in in Clean water,sewage water,oil and other moderately corrosive fluids etc

4.Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
5.OEM and Customized products is welcomed.
6. Factory Price,High Quality ,Fast Delivery and Best Sevice.

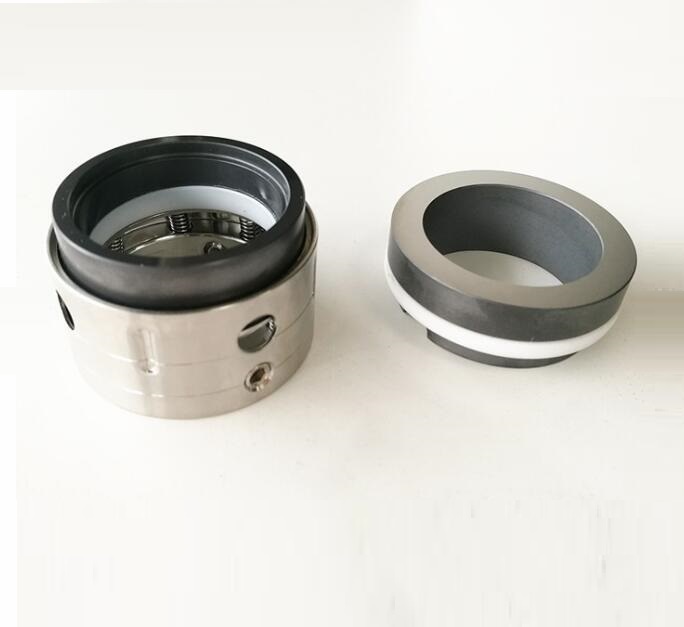

Multi-spring PTFE Wedge Seal John Crane Type 59U PTFE Wedge Seal 0



59U Dimensions(mm)
Size d D3 D6 D7 L3 L4 L8
14 14 24 21 25 23.0 12.0 18.5
16 16 26 23 27 23.0 12.0 18.5
18 18 32 27 33 24.0 13.5 20.5
20 20 34 29 35 24.0 13.5 20.5
22 22 36 31 37 24.0 13.5 20.5
24 24 38 33 39 26.7 13.3 20.3
25 25 39 34 40 27.0 13.0 20.0
28 28 42 37 43 30.0 12.5 19.5
30 30 44 39 45 30.5 12.0 19.0
32 32 46 42 48 30.5 12.0 19.0
33 33 47 42 48 30.5 12.0 19.0
35 35 49 44 50 30.5 12.0 19.0
38 38 54 49 56 32.0 13.0 20.0
40 40 56 51 58 32.0 13.0 20.0
43 43 59 54 61 32.0 13.0 20.0
45 45 61 56 63 32.0 13.0 20.0
48 48 64 59 66 32.0 13.0 20.0
50 50 66 62 70 34.0 13.5 20.5
53 53 69 65 73 34.0 13.5 20.5
55 55 71 67 75 34.0 13.5 20.5
58 58 78 70 78 39.0 13.5 20.5
60 60 80 72 80 39.0 13.5 20.5
63 63 83 75 83 39.0 13.5 20.5
65 65 85 77 85 39.0 13.5 20.5
68 68 88 81 90 39.0 13.5 20.5
70 70 90 83 92 45.5 14.5 21.5
75 75 95 88 97 45.5 14.5 21.5
80 80 104 95 105 45.0 15.0 22.0
85 85 109 100 110 45.0 15.0 22.0
90 90 114 105 115 50.0 15.0 22.0
95 95 119 110 120 50.0 15.0 22.0
100 100 124 115 125 50.0 15.0 22.0

Multi-spring PTFE Wedge Seal John Crane Type 59U PTFE Wedge Seal 1

Multi-spring PTFE Wedge Seal John Crane Type 59U PTFE Wedge Seal 2









We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal,

Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal,

Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal,

Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal,

Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal,

Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps,

Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha,

Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
